Features:

• Efficient heating controller, heating fast
• All stainless steel body, oven chamber stretched by round corner, easy to cleaning
• With 360 degrees hot air heating, steam function,make temperature more uniform
• The steam boiler spray function ensures sufficient steam.
• Manual three-level cleaning function, save time and energy

Model

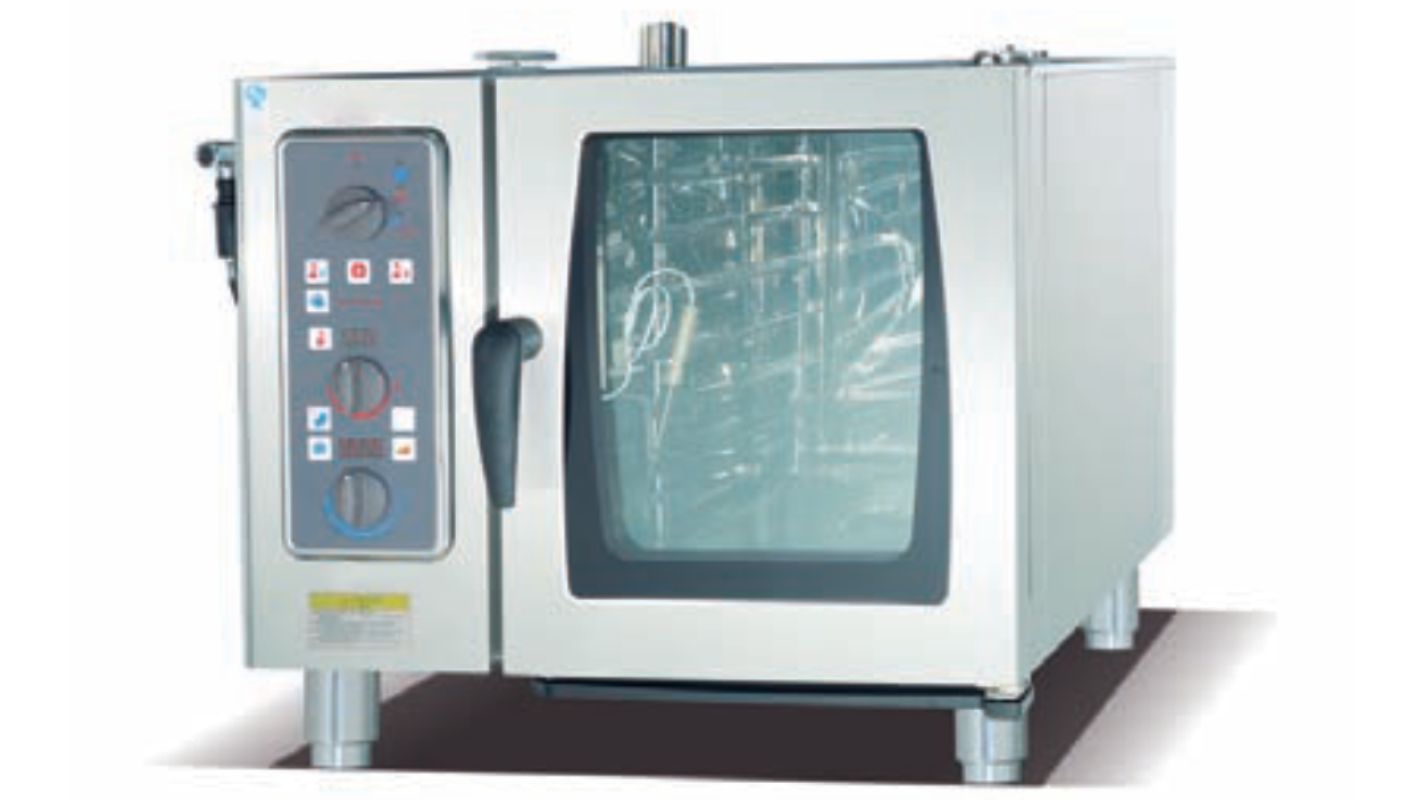

IECBO-EOA-41-SP

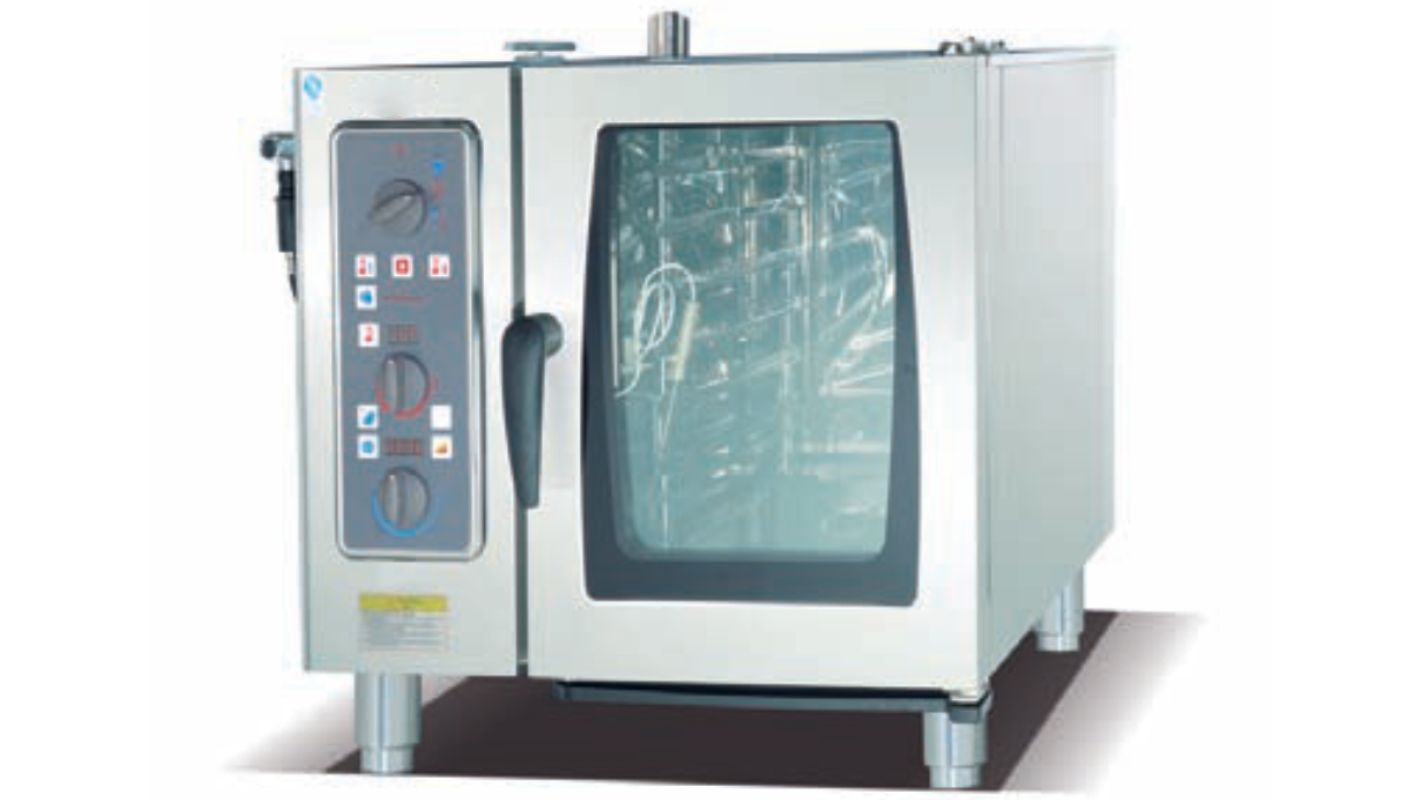

IECBO-EOA-61-SP


Cleaning

Manual

Capacity

4*1/1 GN(90L)

6*/1 GN(100L)

Output

30-80

Pan Size

1/1,1/2,2/3,1/3GN

Width

787mm

817mm

Depth

786mm

771mm

Height

733mm

782mm

Inlet

R3/4"

Outlet

DN 25

DN 32

Water Pressure

150-600kPa or 0.15-0.6Mpa

N.W.

Wattage

6kW

10.5kW

Fuse

3*16A

Voltage

AC220V

3NAC380V

Model

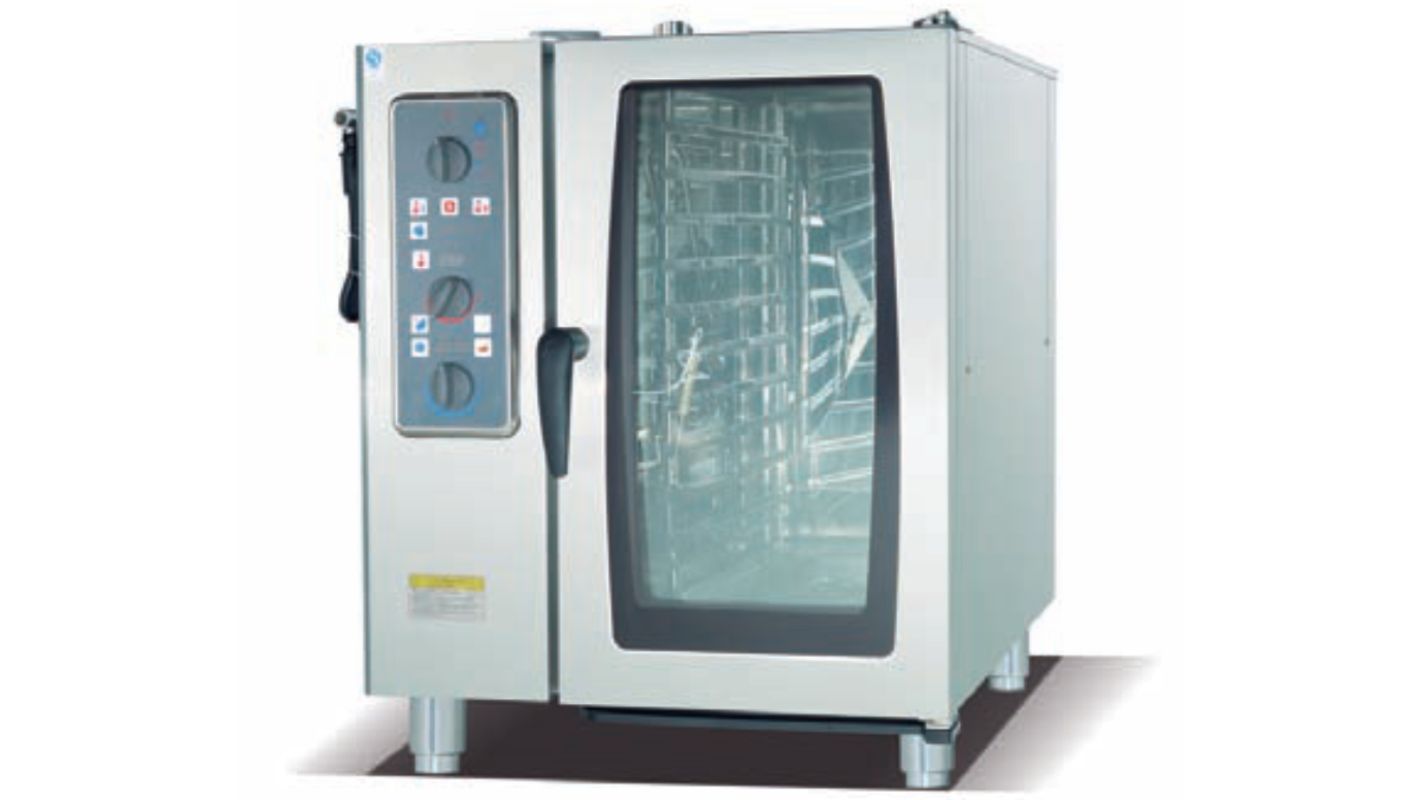

IECBO-EOA-101-SP

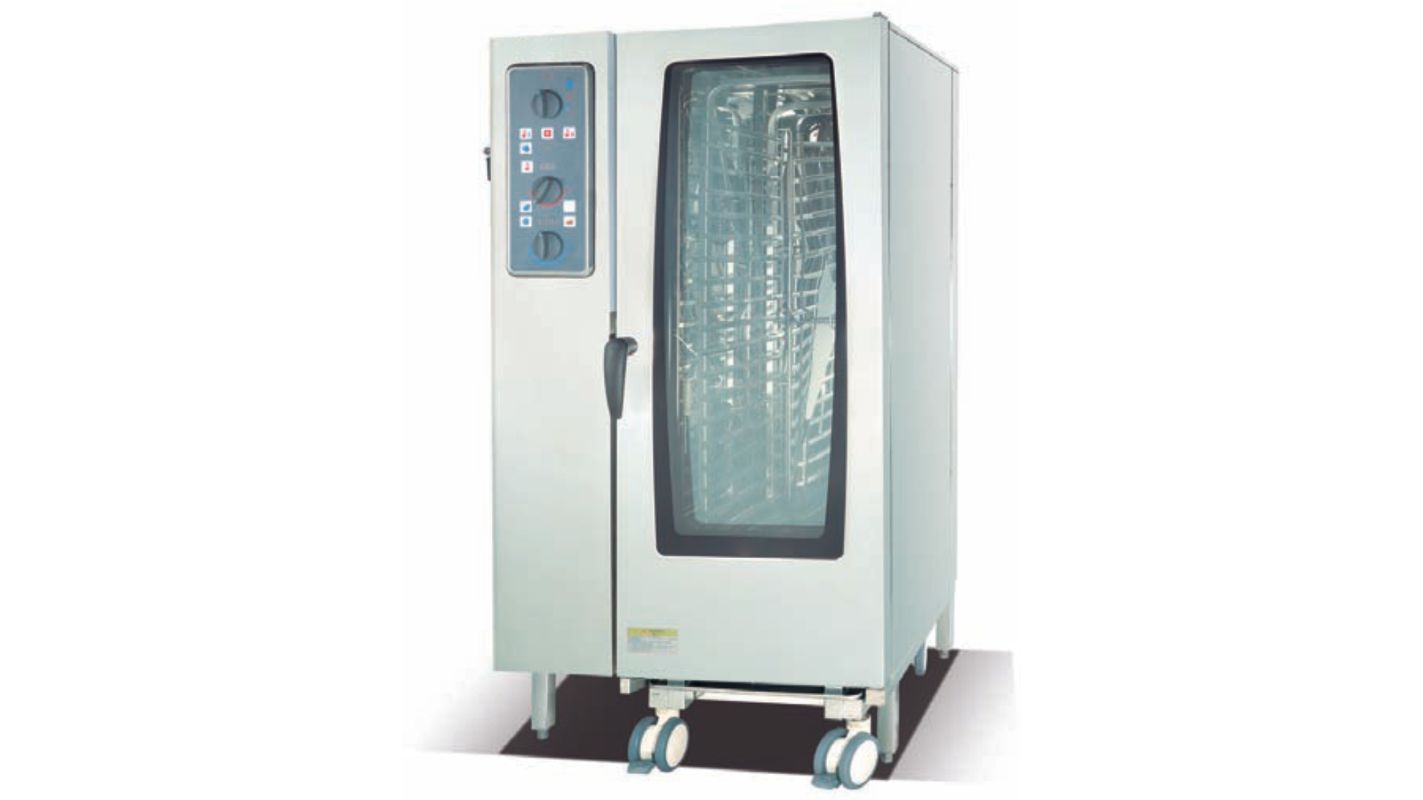

IECBO-EOA-201-SP


Cleaning

Manual

Capacity

10*1/1 GN(150L)

20*1/1 GN(240L)

Output

80-150

150-300

Pan Size

1/1,1/2,2/3,1/3GN

1/2,2/3,1/3GN

Width

817mm

879mm

Depth

771mm

853mm

Height

1060mm

1950mm

Inlet

R3/4"

Outlet

DN 32

Water Pressure

150-600kPa or 0.15-0.6Mpa

N.W.

Wattage

18.5kW

37kW

Fuse

3*16A

Voltage

3NAC380V
