Economic Series
We have various of combination oven for choosing:
Features:
|
Table Top 4 Layer Combi-Oven
|
Model |

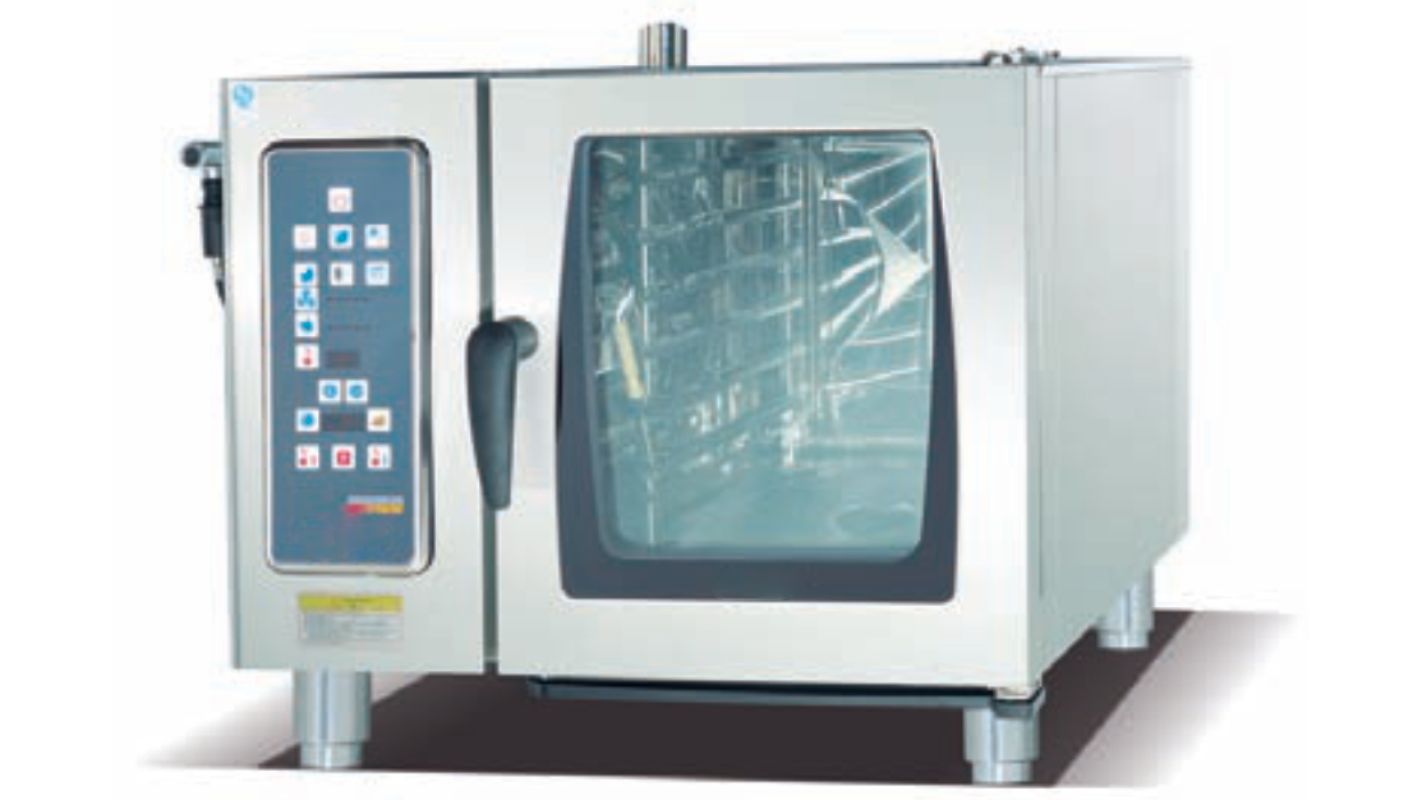

IECBO-EOA-41-MP (Pressing Control Type) |

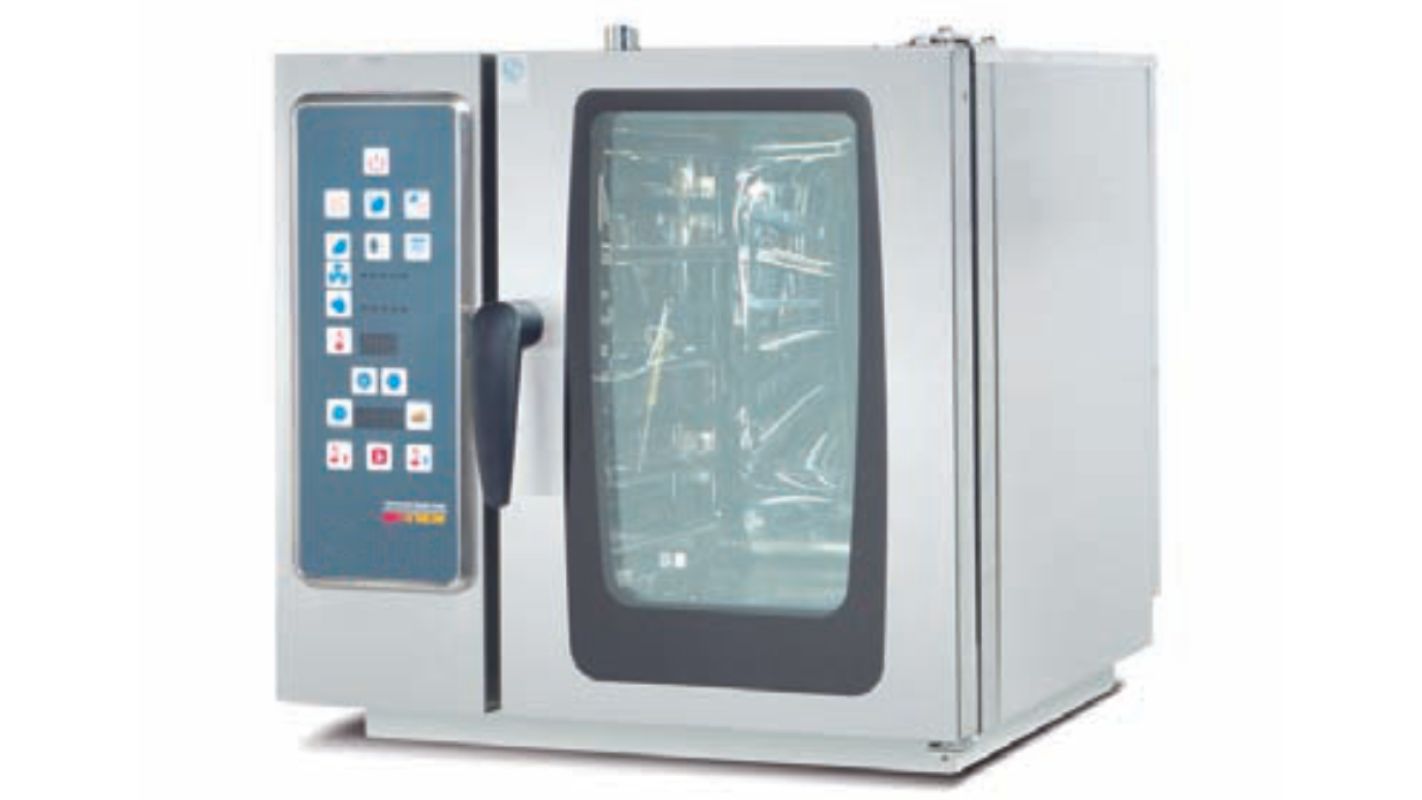

IECBO-EOA-41-MX (Pressing Control Type) |
|
Picture |
|
|
|
Cleaning |
Manual |
|
|
Capacity |
4*1/1 GN(90L) |
4*2/3 GN(40L) |
|
Output |
30-80 |
30-80 |
|
Pan Size |
1/1,1/2,2/3,1/3GN |
1/2,2/3,1/3GN |
|
Width |
787mm |
688mm |
|
Depth |
786mm |
695mm |
|
Height |
733mm |
644mm |
|
Inlet |
R3/4" |
|
|
Outlet |
DN 25 |
|
|
Water Pressure |
150-600kPa or 0.15-0.6Mpa |
|
|
N.W. |
|
85kg |
|
Wattage |
6kW |
6kW |
|
Fuse |
3*16A |
3*16A |
|
Voltage |
AC220V |
AC220V |
Table Top 6 Layer Combi-Oven
|
Model |

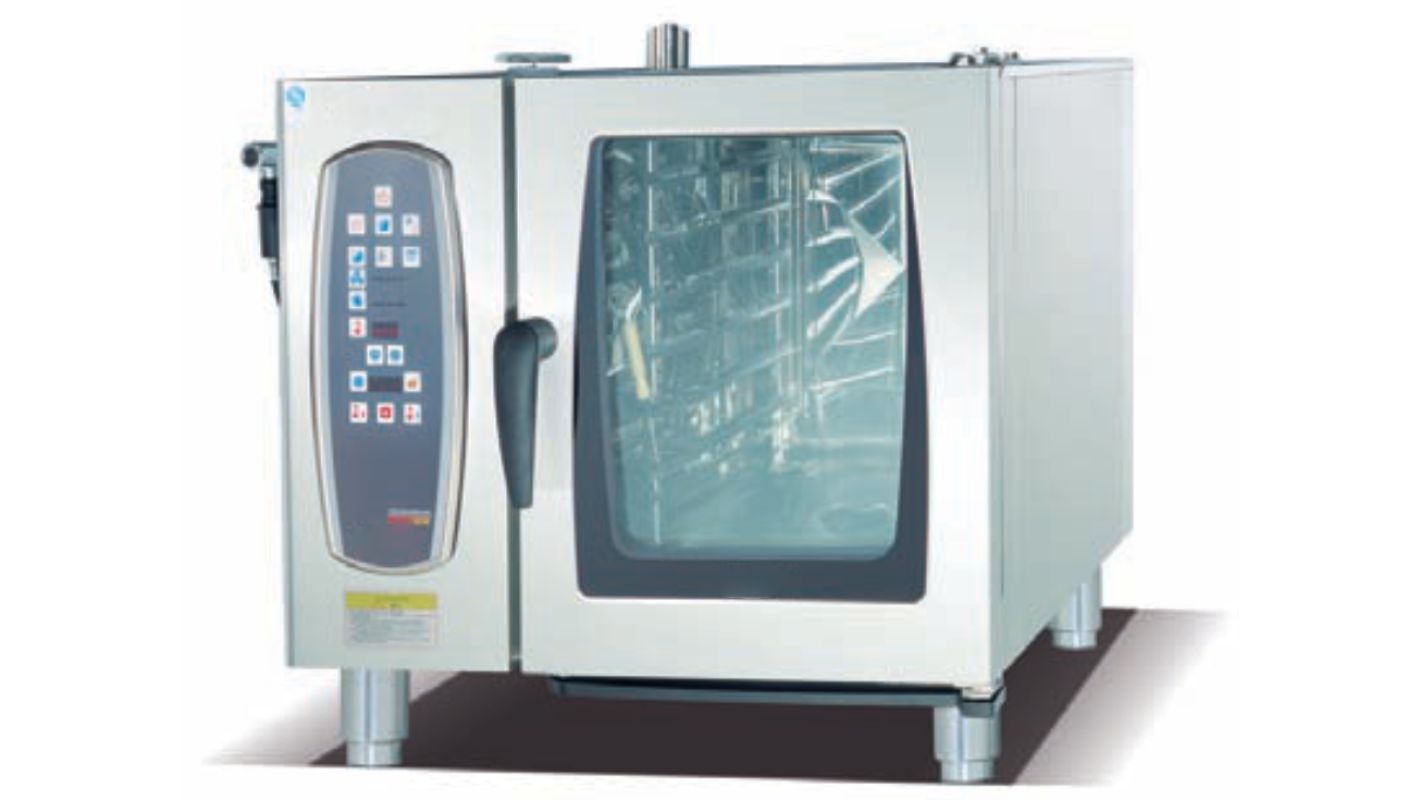

IECBO-EOA-61-MP (Pressing Control Type) |

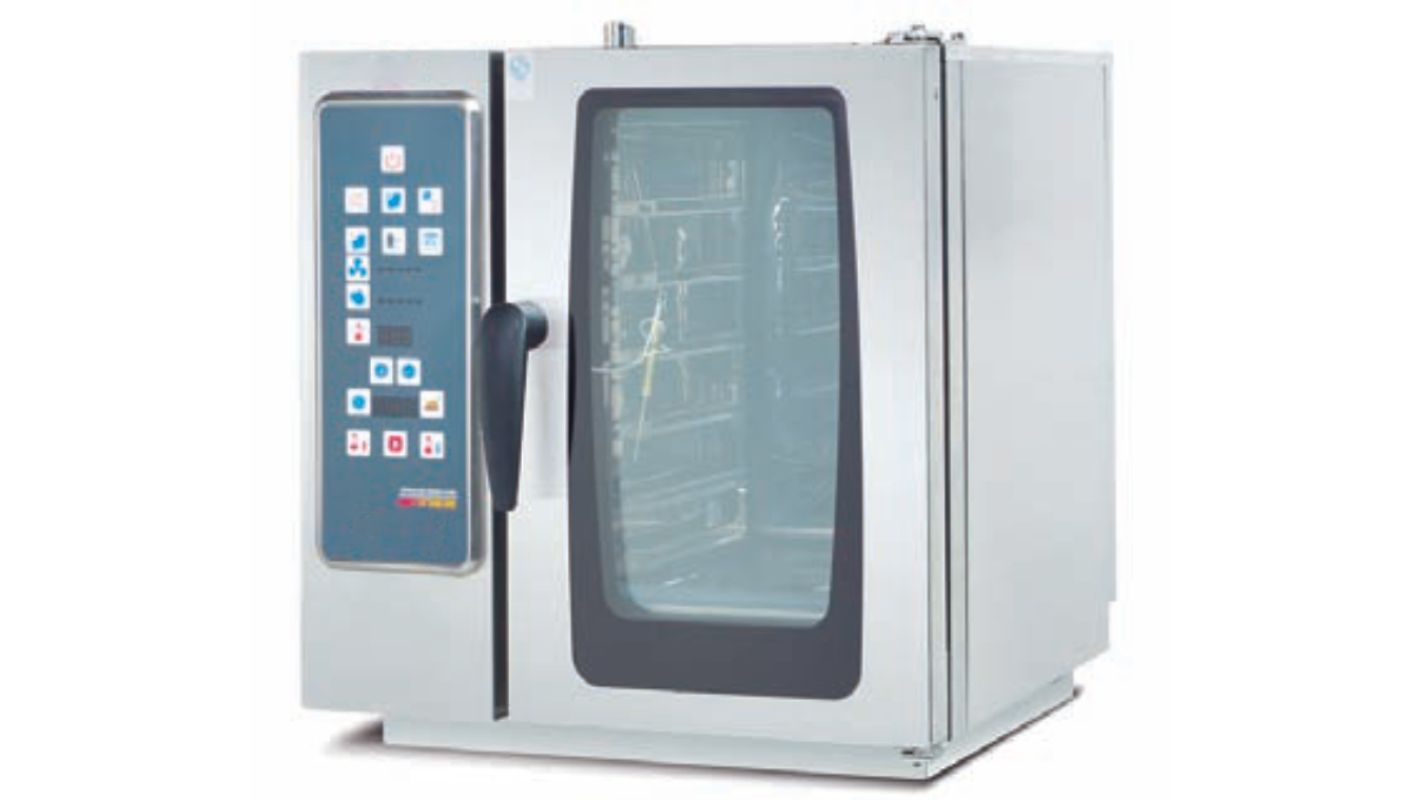

IECBO-EOA-61-MX (Pressing Control Type) |
|
Picture |
|
|
|
Cleaning |
Manual |
|
|
Capacity |
6*1/1 GN(100L) |
6*2/3 GN(50L) |
|
Output |
30-80 |
30-80 |
|
Pan Size |
1/1,1/2,2/3,1/3GN |
1/2,2/3,1/3GN |
|
Width |
847mm |
688mm |
|
Depth |
836mm |
695mm |
|
Height |
858mm |
716mm |
|
Inlet |
R3/4" |
|
|
Outlet |
DN 32 |
DN 25 |
|
Water Pressure |
150-600kPa or 0.15-0.6Mpa |
|
|
N.W. |
|
85kg |
|
Wattage |
9kW |
6kW |
|
Fuse |
3*16A |
3*16A |
|
Voltage |
3NAC380V |
AC220V |
Table Top 10 Layer Combi-Oven
|
Model |

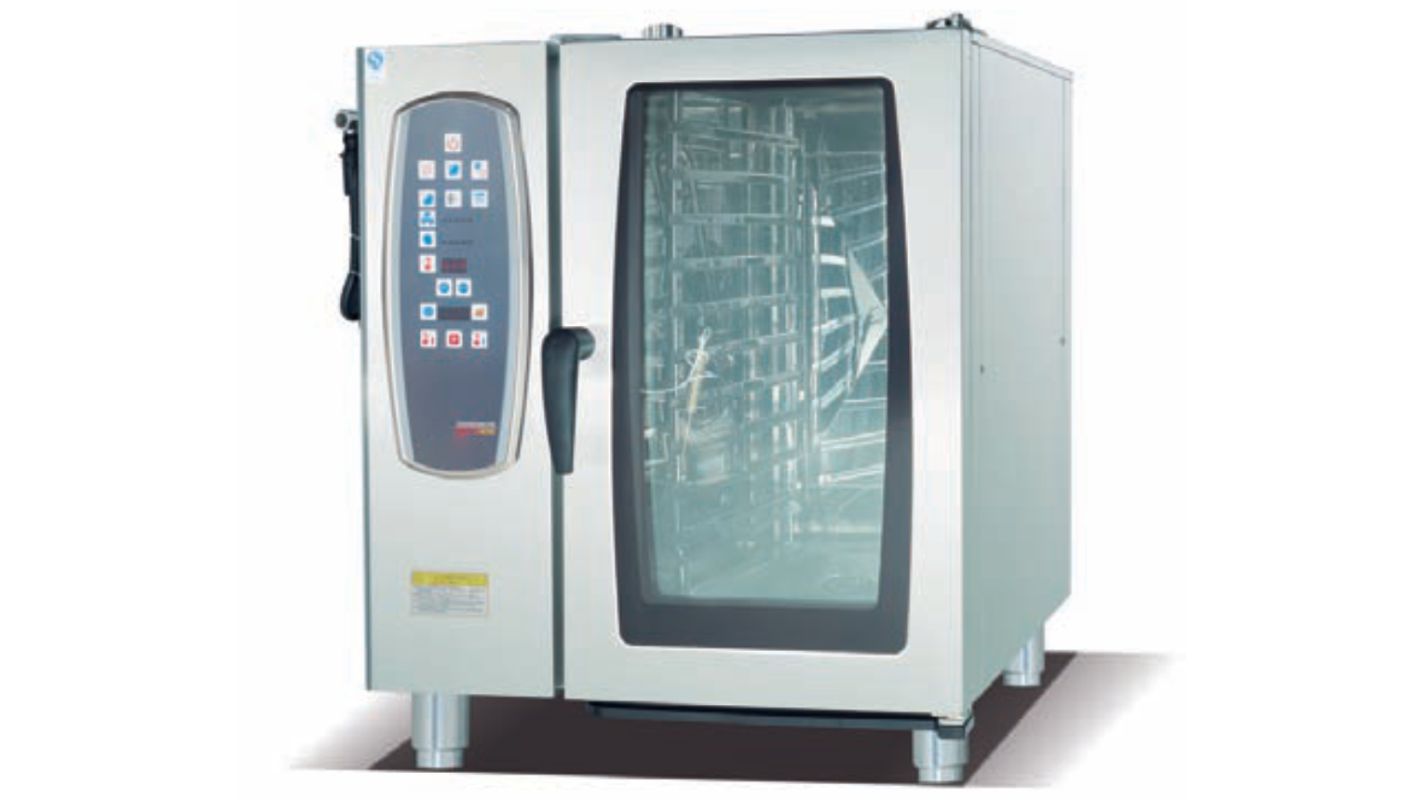

IECBO-EOA-101-MP (Pressing Control Type) |
|
|
Picture |
|
|
|
Cleaning |
Manual |
|
|
Capacity |
10*1/1 GN(150L) |
|
|
Output |
80-150 |
|
|
Pan Size |
1/1,1/2,2/3,1/3GN |
|
|
Width |
847mm |
|
|
Depth |
836mm |
|
|
Height |
1120mm |
|
|
Inlet |
R3/4" |
|
|
Outlet |
DN 32 |
|
|
Water Pressure |
150-600kPa or 0.15-0.6Mpa |
|
|
N.W. |
|
|
|
Wattage |
18kW |
|
|
Fuse |
3*16A |
|
|
Voltage |
3NAC380V |
|
