Gas burners with oven

Features:

• Heavy duty gas burner with individual switch and thermostat.
• Heavy duty removable cast iron grates(12"x12") for easy cleaning.
• Open top burners, each 30,000BTU/Hr

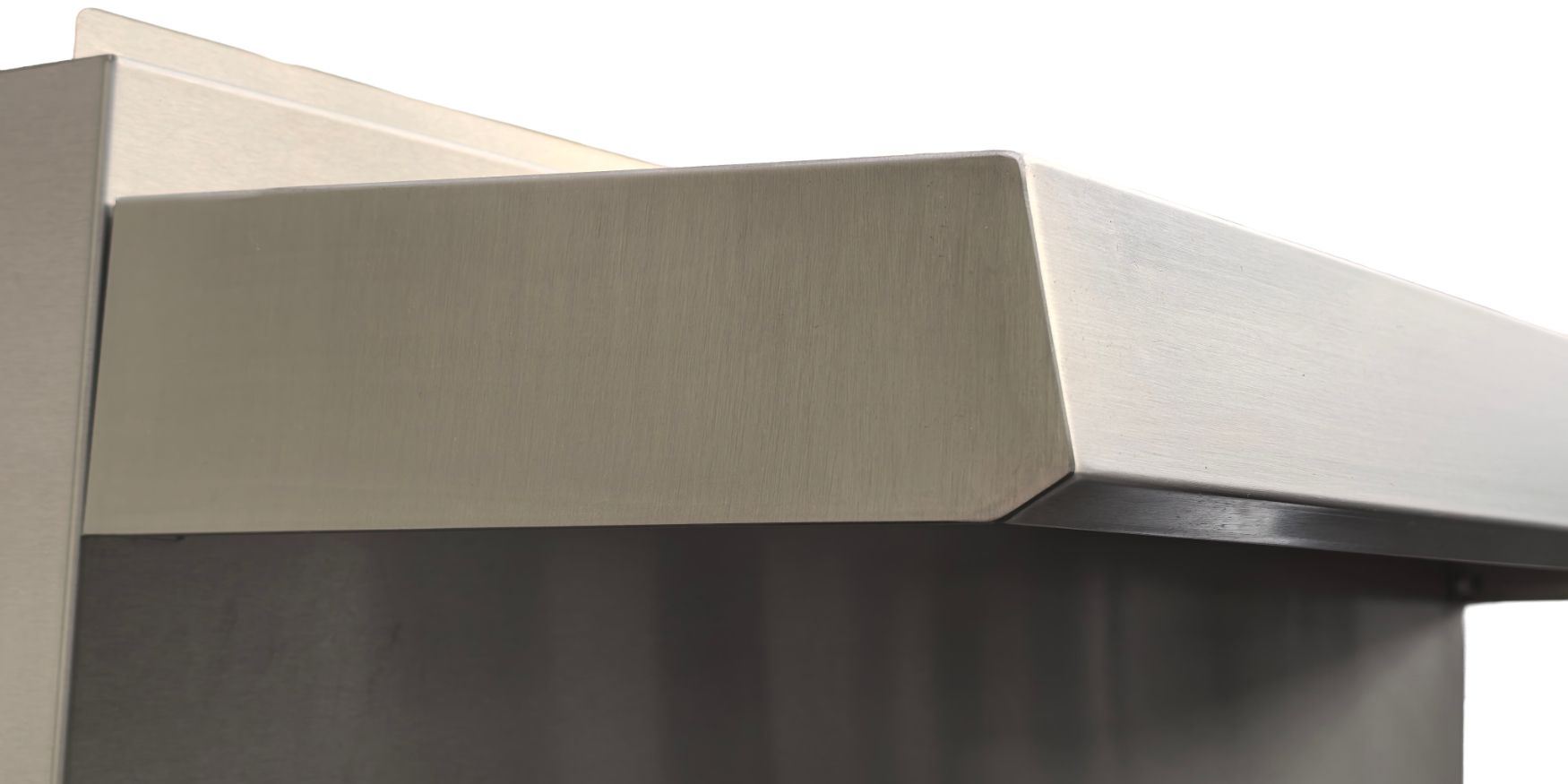

• 6" adjustable stainless steel heavy duty legs and back shelves can be removed for saving transportation cost.
• Stainless steel pilot for durability.
• Temperature range for oven from 250 F -550 F. Easy conversion from NG to LPG and vice versa.
• Stainless steel crumb tray with rounded edges
• Optional with castors.

Model

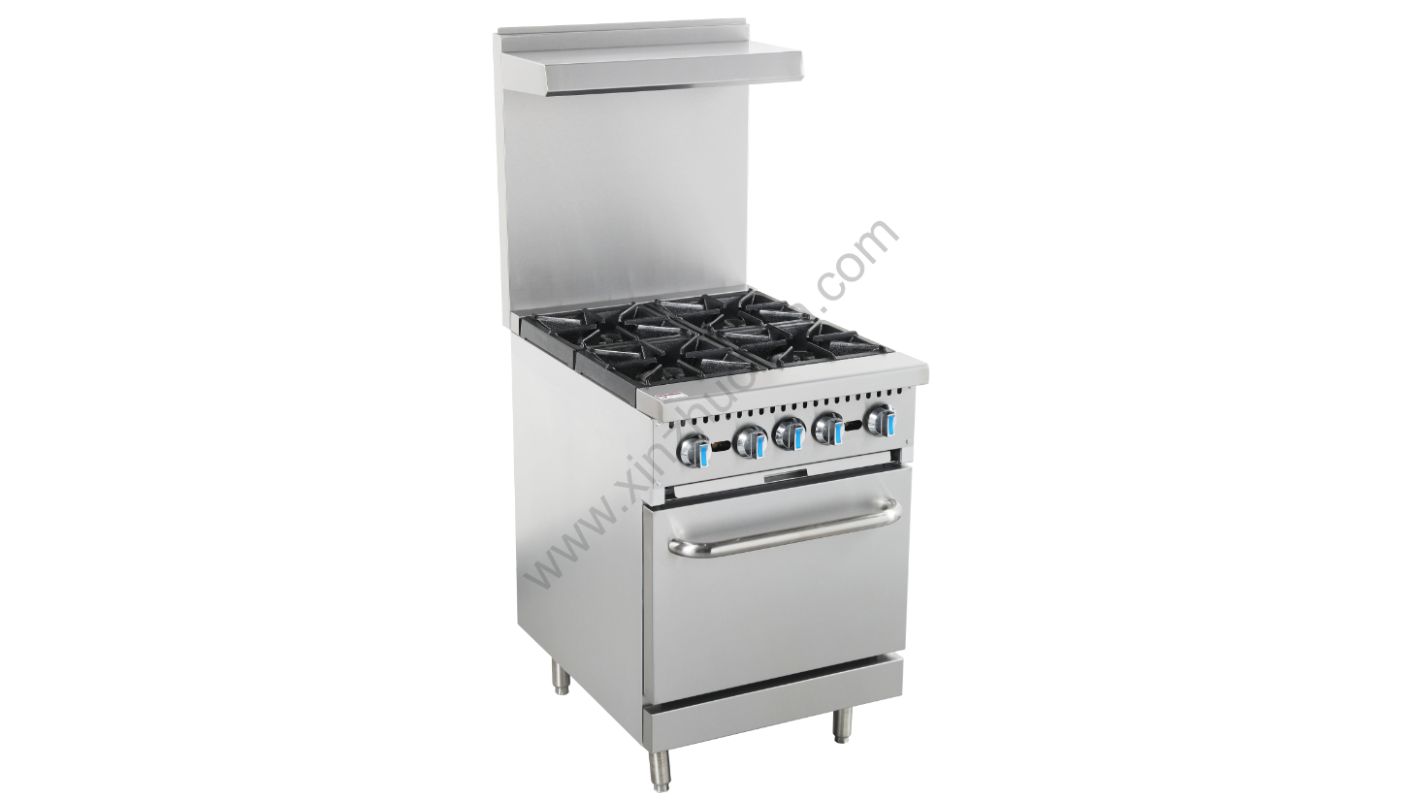

XZL-B24

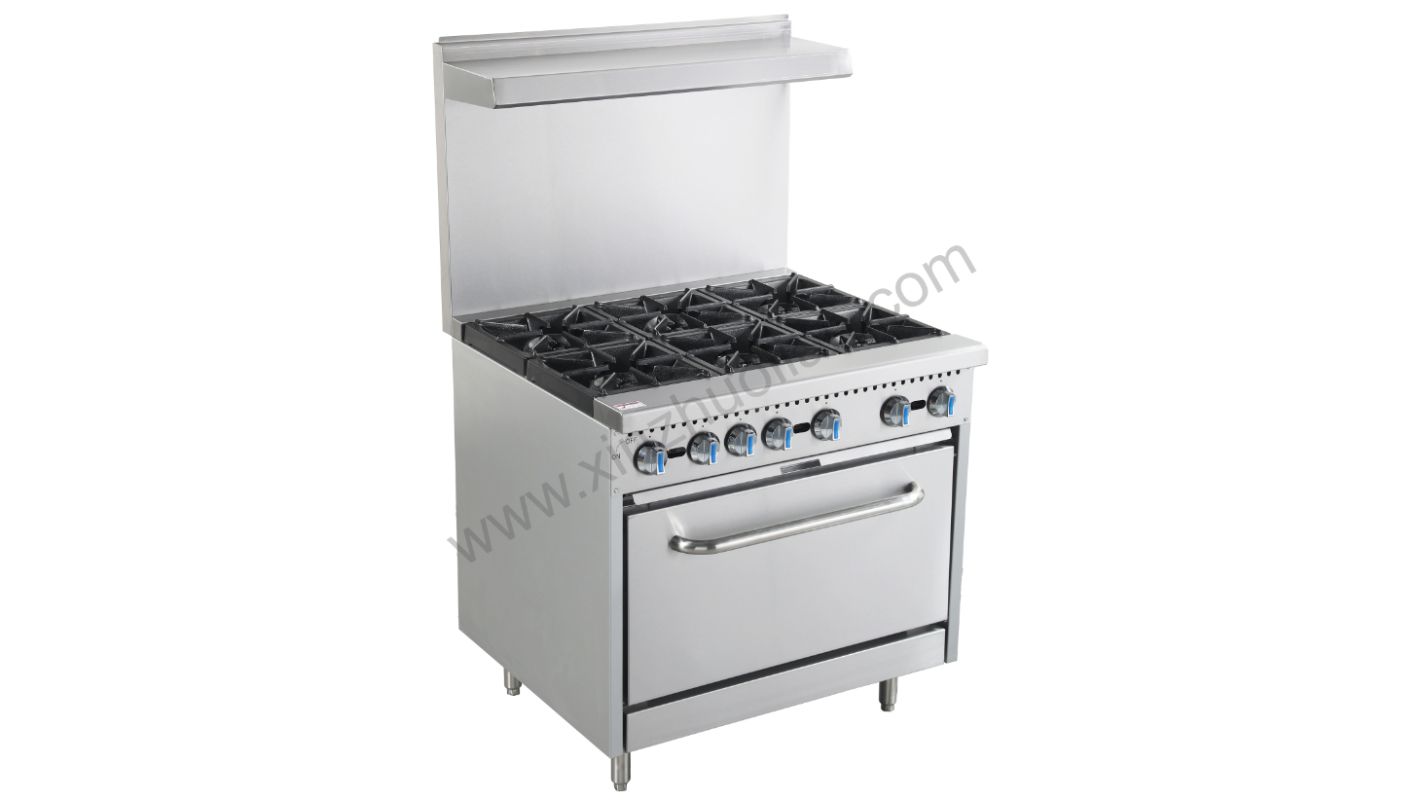

XZL-B36

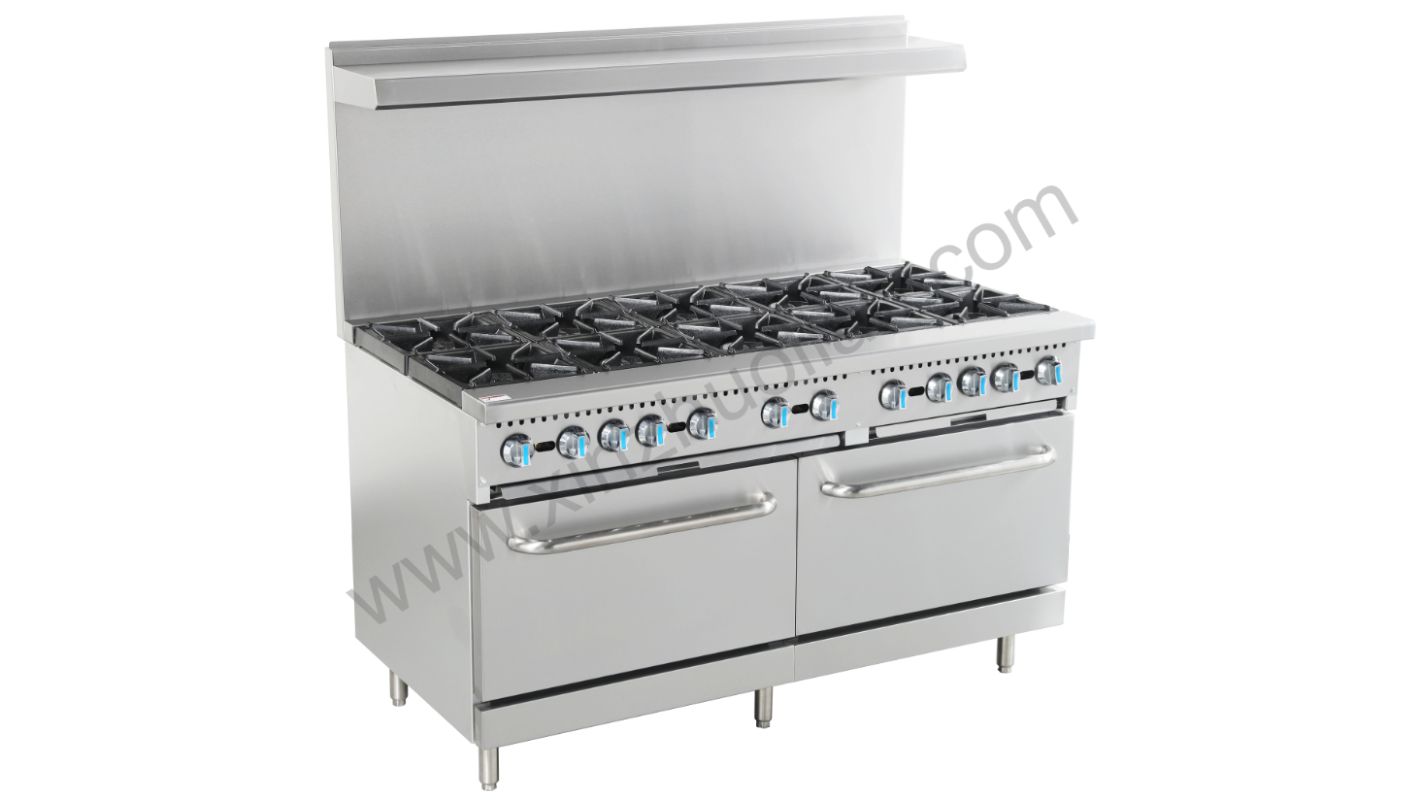

XZL-B60


Qty. of Burner

4

6

10

Burner Power

4x30,000BTU

6x30,000BTU

10x30,000BTU

Oven Power

1x30,000BTU

1x30,000BTU

2x30,000BTU

Total Power

150,000BTU

210,000BTU

360,000BTU

Product Size

610x851x1540mm
26"×33.5"×60.6"

915x851x1540mm
36"×33.5"×60.6"

1525x851x1540mm
60"×33.5"×60.6"

Packing Size

670x936x1145mm
26.38"×36.85"×45.08”

975x936x1145mm
38.38"×36.85"×45.08”

1585x936x1145mm
62.4"×36.85"×45.08”

N.W.

122KG
267lbs

165KG
363lbs

282KG
621lbs

G.W.

152KG
335lbs

204KG
450lbs

330KG
727lbs

Features:

• Heavy duty gas burner with individual switch and thermostat.
• Heavy duty removable cast iron grates(12"x12") for easy cleaning.
• Open top burners, each 30,000BTU/Hr
• 3/4" thickness griddle plate, U-shaped burner.
• 6" adjustable stainless steel heavy duty legs and back shelves can be removed for saving transportation cost.
• Stainless steel pilot for durability.
• Temperature range for oven from 250 F -550 F. Easy conversion from NG to LPG and vice versa.
• Stainless steel crumb tray with rounded edges
• Optional with castors.

Model

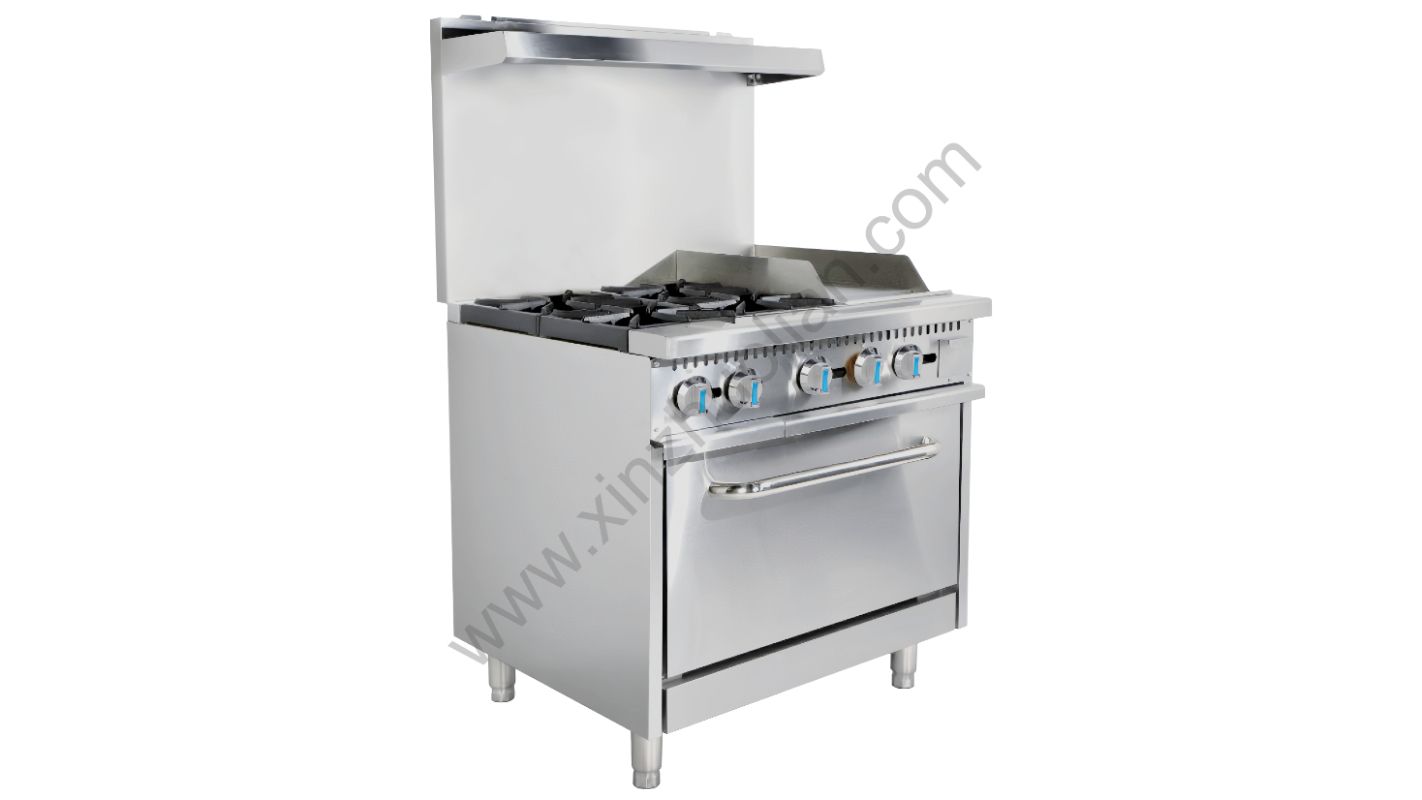

XZL-B36-G12

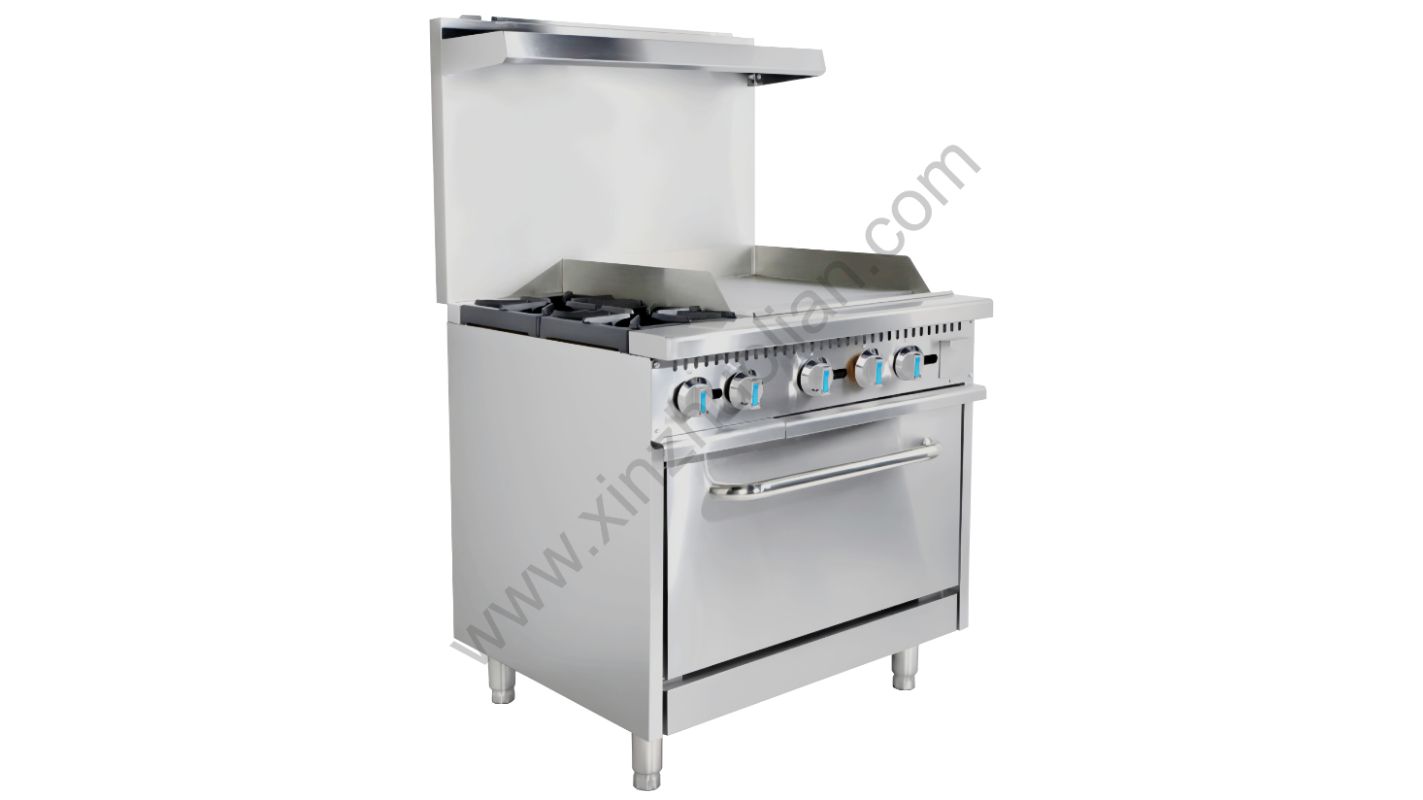

XZL-B36-G24

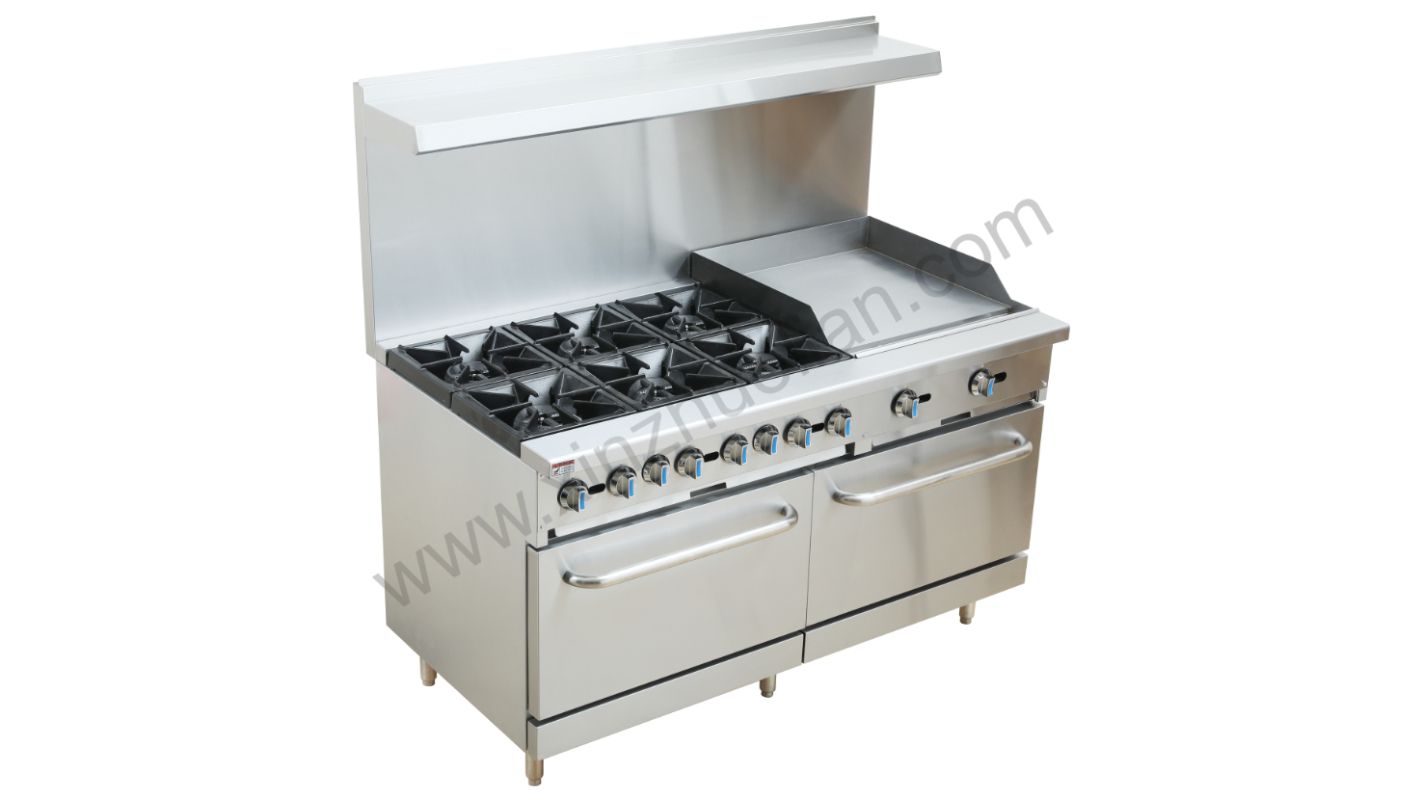

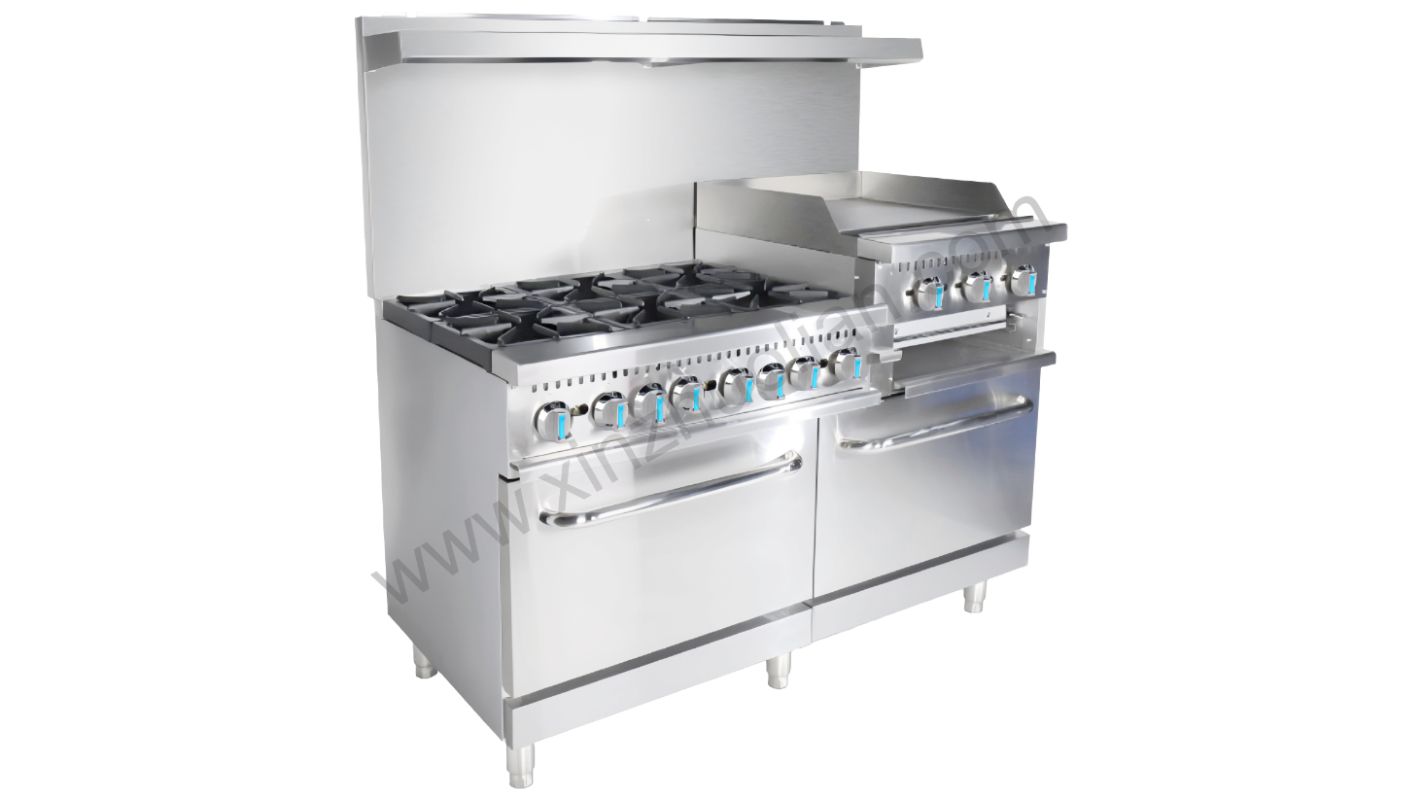

XZL-B60-G24


Qty. of Burner

4

2

6

Burner Power

4x30,000BTU

2x30,000BTU

6x30,000BTU

Griddle Power

1x30,000BTU

2x30,000BTU

2x30,000BTU

Oven Power

1x30,000BTU

1x30,000BTU

2x30,000BTU

Total Power

180,000BTU

150,000BTU

300,000BTU

Product Size

915x851x1540mm
36"×33.5"×60.6"

915x851x1540mm
36"×33.5"×60.6"

1525x851x1540mm
60"×33.5"×60.6"

Packing Size

975x936x1145mm
38.38"×36.85"×45.08”

975x936x1145mm
38.38"×36.85"×45.08”

1585x936x1145mm
62.4"×36.85"×45.08”

N.W.

183KG
403lbs

187KG
412lbs

310KG
683lbs

G.W.

215KG
474lbs

221KG
487lbs

362KG
798lbs

Features:

• Open top burners, each 30,000BTU/Hr
• 3/4" thickness griddle plate, U-shaped burner.
• 6" adjustable stainless steel heavy duty legs and back shelves can be removed for saving transportation cost.
• Stainless steel pilot for durability.
• Temperature range for oven from 250 F -550 F. Easy conversion from NG to LPG and vice versa.
• Stainless steel crumb tray with rounded edges
• Optional with castors.

Model

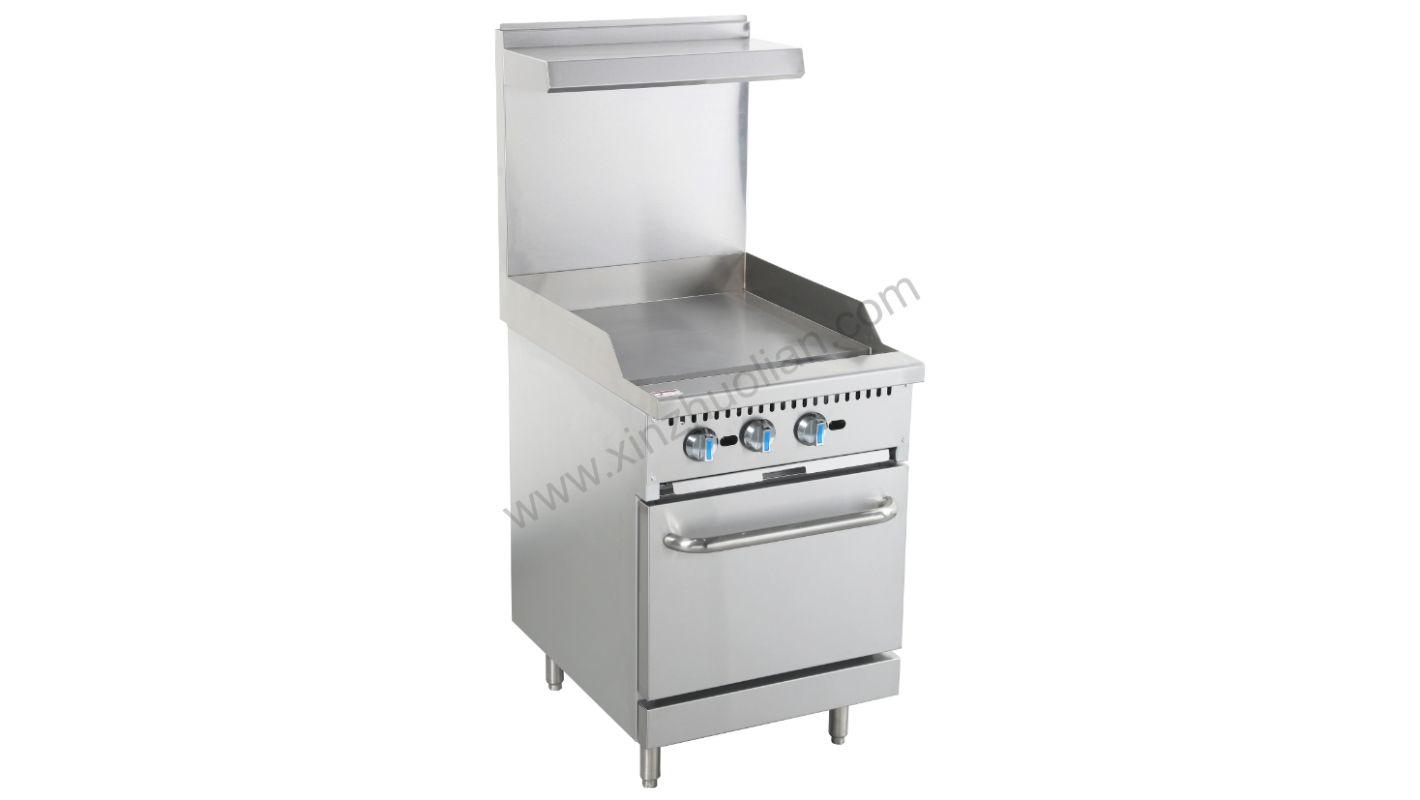

XZL-P24

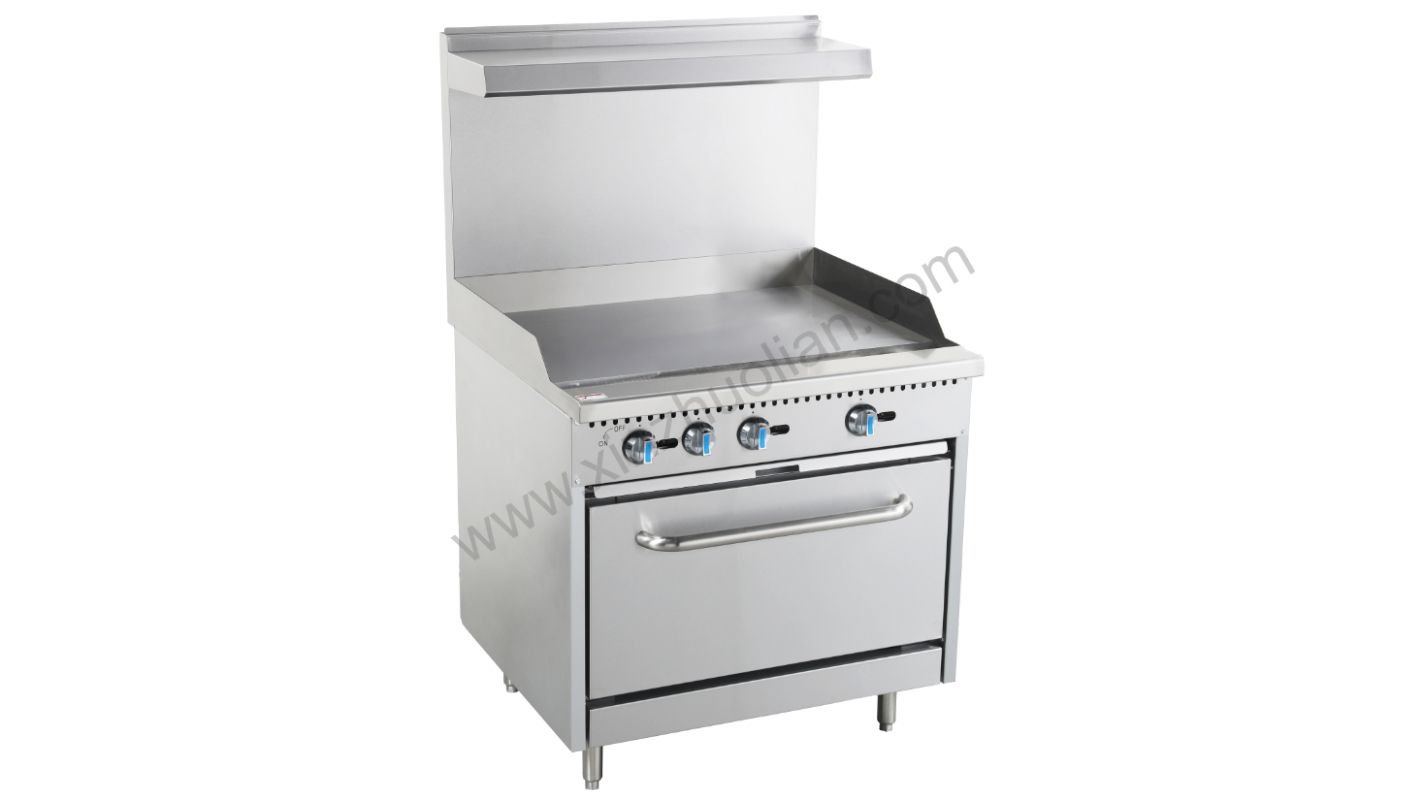

XZL-P36


Qty. of Burner

2

3

Griddle Power

2x30,000BTU

3x30,000BTU

Oven Power

1x30,000BTU

1x30,000BTU

Total Power

90,000BTU

120,000BTU

Product Size

610x851x1540mm
24"×33.5"×60.6"

915x851x1540mm
36"×33.5"×60.6"

Packing Size

670x936x1145mm
26.38"×36.85"×45.08”

975x936x1145mm
38.38"×36.85"×45.08”

N.W.

134.5KG
296lbs

156.5KG
345lbs

G.W.

164.5KG
363lbs

180.5KG
398lbs

Features:

• Heavy Duty Gas Burner wtih Individual Switch and Thermostat
• Heavy Duty Removable Cast lron Grates(12"x12") for easy cleaning.
• Open top burners, each 30,000BTU/Hr
• 3/4" thickness griddle plate, U-shaped Burner.
• 6" adjustable stainless steel heavy duty legs and back shelves can be removed for saving transportation cost.
• Stainless Steel pilot for durability
• Temperature Range for Oven from 250 F -550 F.
• Easy conversion from NG to LPG and vice versa
• Stainless steel crumb tray with rounded edges.
• Optional with castors.

Model

XZL-B36-G24


Qty. of Burner

6

Burner Power

6x30,000BTU

Oven Power

2x30,000BTU

Griddle & Salamander Power

3x12,000BTU

Total Power

276,000BTU

Product Size

1525x851x1540mm
60"×33.5"×60.6"

Packing Size

1585x936x1145mm
62.4"×36.85"×45.08”

N.W.

327KG
720lbs

G.W.

379KG
835lbs
